Brand Name : | Zebung |
Model Number : | ZBFO01 |
Price : | negotiated by specific quantity |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 1200m per day |
Delivery Time : | 8-10days |
Certification : | ISO9001 |

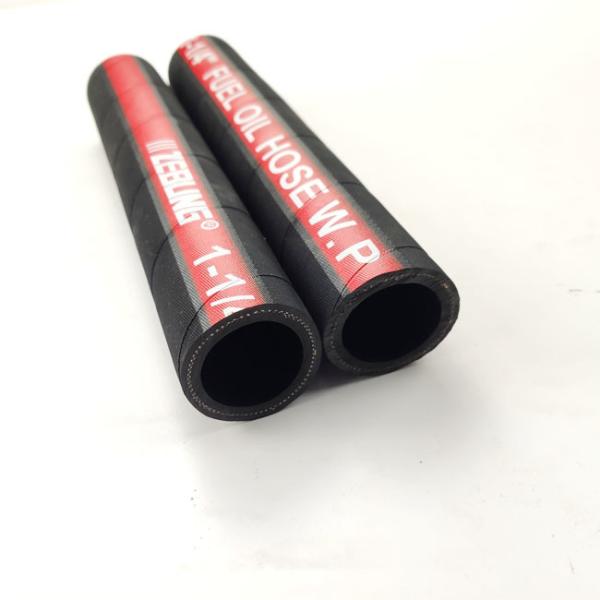

Cloth Covered Nitrile Anti-static Flexible Diesel/Fuel Oil Discharge Hose
Fuel Oil Discharge Hose also called flexible reinforced oil hose, fuel oil discharge hose is
a type of flexible hose for discharge of oil with aromatic content. Compared with hydraulic
oil hose, the fuel oil rubber hose has inserted copper wire for ground connection and
eliminating static electricity. The inner and outer rubber material has excellent oil, abrasion
and wear resistance performance.
Additional, it has up to 50% aromatic content resistant performance for heavy duty applications.
Fuel Oil Discharge Hose Construction:
Tube: Black, smooth, Nitrile.
Reinforcement: Multi plies high strength synthetic fabric, copper
wire
Cover: Black, wrapped surface, weather and ozone resistant,
synthetic rubber.
I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
6 | 1/4" | 14 | 300 | 20 | 900 | 60 | 60 | 0.18 | 328 | 100 |
8 | 5/16" | 16 | 300 | 20 | 900 | 60 | 80 | 0.21 | 328 | 100 |
10 | 3/8" | 18 | 300 | 20 | 900 | 60 | 100 | 0.25 | 328 | 100 |
13 | 1/2" | 22 | 300 | 20 | 900 | 60 | 130 | 0.36 | 328 | 100 |
16 | 5/8" | 26 | 300 | 20 | 900 | 60 | 160 | 0.48 | 328 | 100 |
19 | 3/4" | 29 | 300 | 20 | 900 | 60 | 190 | 0.55 | 328 | 100 |
25 | 1" | 36 | 300 | 20 | 900 | 60 | 250 | 0.78 | 328 | 100 |
32 | 1-1/4" | 44 | 300 | 20 | 900 | 60 | 250 | 1.06 | 200 | 61 |
38 | 1-1/2" | 52 | 300 | 20 | 900 | 60 | 300 | 1.41 | 200 | 61 |
51 | 2" | 65 | 300 | 20 | 900 | 60 | 400 | 1.82 | 200 | 61 |
64 | 2-1/2" | 78 | 300 | 20 | 900 | 60 | 500 | 2.3 | 200 | 61 |
76 | 3" | 90 | 300 | 20 | 900 | 60 | 600 | 2.68 | 200 | 61 |
102 | 4" | 119 | 300 | 20 | 900 | 60 | 800 | 4.21 | 200 | 61 |
Fuel Oil Discharge Hose Application:
Softwall hose Designed for the discharge of petroleum-based
products, diesel, gasoline, lubricants, fuel, with aromatic content
up to 50%.
Fuel Oil Discharge Hose Temperature: -35°C to +80°C
Fuel Oil Discharge Hose Characteristic:
Weather and abrasion resistant cover
Flexible and less distortion
For aromatic content up to 50%
![]() |
