    Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix

    Ask Lasest Price
    Brand Name : Zebung
    Model Number : GB-ZB0425F
    Certification : ISO9001
    Price : usd 0.8-2.0 Per meter
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1500m per day
    Delivery Time : between 15-20 days for one 20GP
    • Product Details
    • Company Profile

    Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix

    Fuel And Diesel Oil Delivery And Suction Hose from 6mm to 304mm with 5times bending radius
    Ø Inner rubber: Black NBR synthetic rubber
    Ø Reinforcement layer: High tensile textile cord with helix steel wire
    Ø Cover rubber: CR
    Anti-static electricity with copper wire for handle fuel oil
    Length:30m.40m.60m ,other parameters can be do as your requirements

    Description:

    1. Flexible Fuel&Oil Suction and Delivery Hose is used in plant and oil field loading operations requiring a strong

    and flexible hose. Handles gasoline, oil and petroleum .

    2. The wide corrugated cover provides perfect kink resistance and outstanding flexibility.

    3. The hose is designed for off shore drilling and other demanding applications where longer lengths and fewer

    connections are desired. High quality hose design for superior pressure and higher working pressure in tough

    environments, cover resistance to weather,salt water, sunlight and oil.

    4. OS&D design to handle petroleum products up to 50% aromatics on marine docks , ships and barges. Can

    meet the longest possible service conditions.

    5. Exclusive design for rugged oil field serve where full suction and working pressure are required.

    Ideal for handling crude, brine,,drilling, mud, tank bottoms, mild solutions of hydrochloric acids, and diesel fuels.



    Raw materials

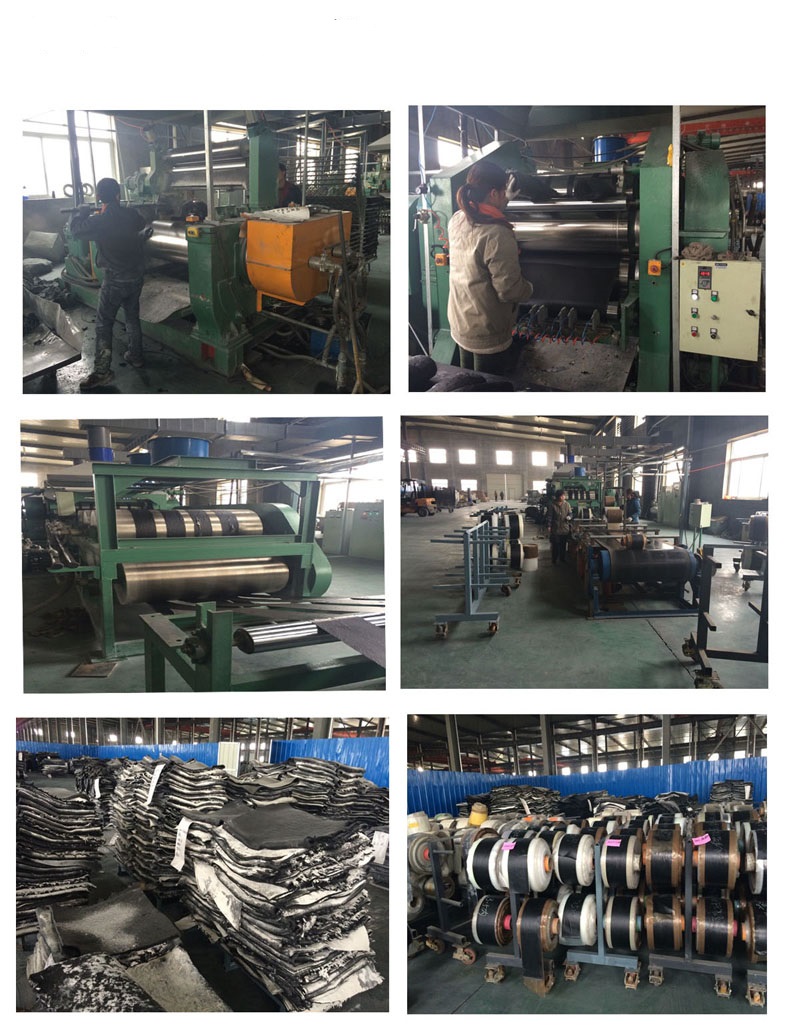

    The production of the new intensive refining workshop has greatly improved the quality and output of rubber
    film raw materials, the raw material rubber adopts the segmented treatment mode, the black rubber and the
    colored rubber are separated, in order toensure the quality of the colored rubber. Strict inspection standards
    are applied in each process, put into use after qualified inspection.


    Specification

    I.D.O.D.W.P.B.P.B.R.WeightLength
    mminchmmpsibarpsibarmmkg/mftm
    193/4"3015010450301000.6920061
    251"3615010450301500.8620061
    321-1/4"4415010450301901.2320061
    381-1/2"5115010450302201.5420061
    2"6415010450303001.9820061
    642-1/2"7815010450303802.6120061
    763"9015010450304503.1620061
    1024"120150450305505.0820061
    1526"17115010450307508.3430.5
    2038"2241501045030110012.7110030.5
    25410"280150104503019.910
    30412"332.6150104503026.9410


    Company profile

    Hebei Zebung Rubber Hose Technology co,ltd
    Hebei Zebung Rubber Technology CO., LTD located in Dong Zi's hometown, Jing County, the company is
    located in Jing County high-tech development zone, covers a total area of 60,000 square meters, of which
    the construction area is nearly 30,000 square meters. The company has introduced a number of 40 meters,
    60 meters automated production lines from Italy, greatly improved the production efficiency, and has a
    number of large-diameter production lines ready to meet the needs of customers in various orders.
