Submarine Hose With Collars with one end reinforcement GMPHOM 2009
standard
Zebung OCIMF offshore marine hoses are produced according to OCIMF
(Oil Companies International Marine Forum) stand-
ards.We specialize in the manufacturing and supply of marine and
oil hoses with single and double carcass designs for floati-
ng hoses and submarine hoses.
We are currently developing double carcass floating hoses, and
double carcass submarine hoses with leak detection devices.
1. These hoses are suitable for transporting crude oil and liquid
petroleum products. They feature a working temperature range
from -20℃ to 82℃, the content of aromatic hydrocarbon in crude oil
should not exceed 50%. Used for oil delivering between
tanker and tanker, tanker and an offshore oilfield, tanker and
yard, also used in submarine oil delivery .
2. Rated working pressure is more than 15 bar, and it can be
customized for 19 bar and 21 bar ratings according to customer re-
quirements.
3. The inner layer of the marine hose is designed for a flow rate
of 21m/s. If the flow rate is more than 21m/s, the hose has to be
customized to accommodate the increased load.
4. The length of offshore marine hose is provided with 10.7m and
12.2m, the tanker hose is offered at the length of 9.1m.
5. The length tolerance of the hose is 1% of the standard length,
the permanent elongation should not exceed 0.7%, and
the provisional elongation should not exceed 2.5%.
| I.D. | Weight | weight | Weight | O.D. | O.D. | Minimum bending radius |
| mm | 9.1m | 10.7m | 12.2m | A | B | m |
| 150(6") | 382/144 | 419/161 | 456/178 | 368 | 254 | 0.6(2.0') |
| 200(8") | 485/218 | 541/243 | 596/268 | 471 | 311 | 0.8(2.8') |
| 250(10") | 575/286 | 756/315 | 837/344 | 471 | 368 | 1.0(3.3') |
| 300(12") | 893/327 | 1003/372 | 1013/417 | 581 | 471 | 1.2(4.0') |
| 400(16") | 1808/659 | 2028/726 | 2248/793 | 697 | 581 | 1.6(5.3') |
| 500(20") | 2412/928 | 2694/1019 | 2976/1110 | 799 | 697 | 2.0(6.6') |
| 600(24") | 3369/1367 | 3775/1572 | 4181/1659 | 946 | 799 | 2.4(8.0') |
Standards and Specifications
Zebung single carcass hoses are designed and produced in full
accordance to OCIMF standards. These products are also subjected
to manufacturing and testing requirements dictated by ISO 9000:2001
quality standards.
Electrical Continuity A low resistance connection will be provide with a copper wire and
helix steel wire.
Instruction
1. Inner layer: NBR compound synthetic rubber
2. Reinforcement: high tensile strength fabrics with helix steel
wire
3. Cover: CR synthetic rubber
4. Ideal working temperature: -25 to 82℃
5. Safety factor: 5:1
Rated working pressure
The oil hoses have a RWP of at least 15 bar. 19 bar and 21 bar
hoses are also available if specified by the customer. They are
suitable
for operation at an internal pressure from minus 0.85 bar to the
RWP.
Flow Velocity
The linings of Zebung submarine hoses are constructed from
elastomers and fabrics suitable for continuous operation at a flow
velocity
of 21m/s.
Resistance to Temperature, Oil products and Aging
The submarine hoses are suitable for use with crude oil and liquid
petroleum products from -20℃ to 82℃, and an aromatic hydrocarbon
content no greater than 50% by volume.
Productions

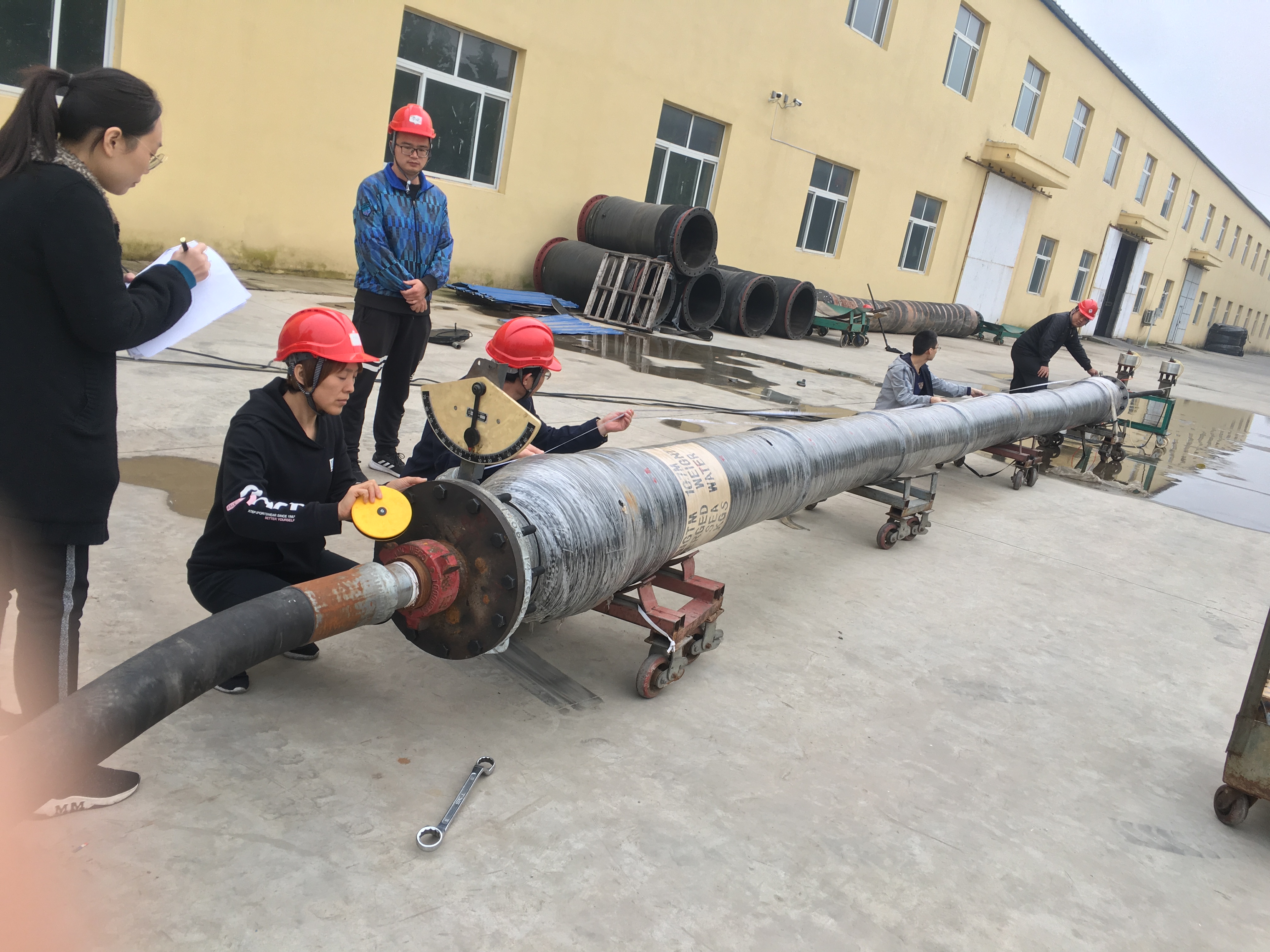

Test according to GMPHOM2009 Standard
Our Laboratory
GMPHOM 2009 BV Class Approved
Factory Introduce
Hebei Zebung Rubber Technology Co., Ltd covering an area of 67000
㎡. The main
characteristics of Zebung rubber hoses are reasonable structure
design, steady and
reliable quality, heat and aging resistance, good flexibility,
fatigue resistance, high
pressure resistance and superior pulse performance. Our product
quality meets and
exceeds the national standards of OCIMF ! With high quality, high
practicability, and
low cost, our products have got high praises by
customers."Excellence, quality first,
reputation first" is our business principle.Our company adheres to
the "integrity, quality,
and innovation" business philosophy and follows the "united,hard
working, enterprising,
dedicated" spirit. We sincerely welcome Every valuable you to visit
us and negotiate
business with us.
